Oil-Water Separators

S series

The S 4-900 oil-water separator series from Worthington Creyssensac offers you a more effective and low maintenance way of getting this important job done without having to rely on third party equipment. The new Worthington Creyssensac S 4-900 safely and reliably separates oil from the condensate of oil-lubricated compressors. More information here.

Purity

Extremely clean waste water

High purity is ensured with oil content as low as 5 ppm at outlet.

Savings

Lower operational costs

You’ll be able to make huge savings thanks to quick and clean service with easy-to-replace cartridges.

Low maintenance

4,000

4,000-hour service interval reflects easy and reduced maintenance.

PRODUCT OVERVIEW

Improved Filtration and Environmental Protection

The S safely and reliably separates oil from the condensate of oil-lubricated compressors. Thanks to its dual-stage treatment with polypropylene and activated carbon or organoclay, this equipment also separates out stable emulsions for more complete filtration. As a result, your waste water meets the most stringent purity standards and contributes to a cleaner environment.


In addition, the S range has a 4,000-hour service interval and offers quick and clean service with easy-to-replace cartridges. It is also available with an overflow indicator, manifold for multiple condensate inlets, a wall mounting kit, and a spill container.

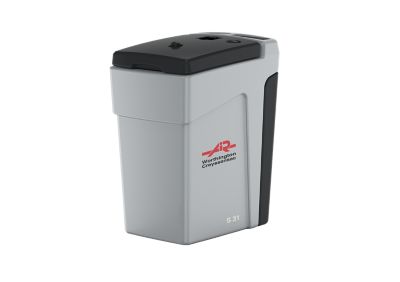

Worthington Creyssensac Oil Water Separator S 31

Dual-stage Filtration Technology

The S has been built with advanced dual-stage filtration technology that delivers exceptional oil-water separation. Indeed, in the first stage, polypropylene takes care of removing free oil efficiently, while the second stage uses activated carbon or organoclay to tackle stubborn emulsions.

So, this smart combination ensures a deeper and also more thorough filtration process that meets even the toughest environmental standards. The outcome of this is cleaner and purified wastewater that boosts operational efficiency and supports a greener, more sustainable future.

Empowering excellence through diversity

By cultivating an environment of diversity, inclusion and well-being, we empower every individual to contribute their unique perspectives, fueling innovation and fostering a culture where everyone thrives.

people and diversity

FULL OF FEATURES

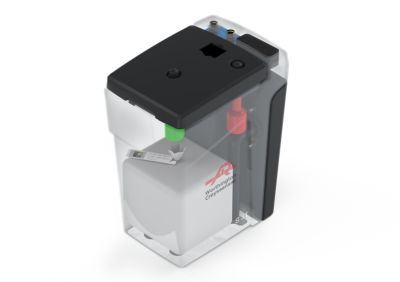

Service Indicator and Filtration with Polypropylene

Service indicator - While traditional oil-water separators can be difficult and messy to service, the S is fitted with a service indicator, specifically designed for easy maintenance.


Filtration with polypropylene and activated carbon/organoclay - Filtration starts with polypropylene removing the free oil, followed by activated carbon/organoclay separating the stable emulsions. This dual-stage treatment also filters out more oil than conventional oil-water separators.

Worthington Creyssensac Oil Water Separator S 31

Why Choose the S Oil-Water Separator?

Regarding condensate treatment, the S 4-900 truly stands out with its advanced dual-stage filtration designed to generate cleaner waste water and meet the strictest environmental standards. Its long service intervals and simple maintenance mean less hassle for you, while its flexible installation options make it adaptable to any system. For a reliable, efficient solution that helps protect both your equipment and the environment, choose the S Oil-Water Separator.

MORE FEATURES

Extended Service Interval and Environmental Protection

Extended Service Interval – The range features an substantial service interval of 4,000 hours, thus increasing the reliability and decreasing the required maintenance.


Environmental Protection – These equipment have been designed for high efficiency in oil separation from condensate so that waste water is of the highest possible purity. By eliminating free oil and stable emulsions, it is helpful in environmental protection and sustainable development to a great extent.

Airlogic2T Controller

  • Dual-Stage Filtration
    Carried out with polypropylene and activated carbon or organoclay to remove both free oil and stable emulsions for superior filtration.

  • Extended Service Interval
    4,000-hour service interval reduces maintenance frequency and enhances reliability.

  • Low Maintenance
    Easy-to-replace cartridges simplify servicing, minimising downtime and maintenance costs.

  • Environmental Protection
    This product helps ensure environmentally safe discharge by meeting high waste water purity standards.

  • High Efficiency
    Extend the Worthington Creyssensac quality throughout your compressed air system

  • Overflow Indicator
    Monitors condensate levels to prevent overflow and ensures efficient operation.

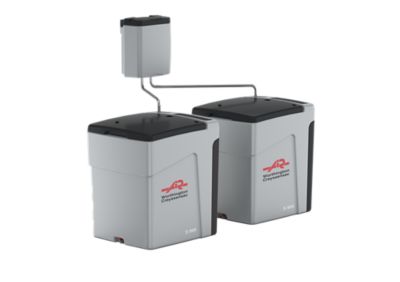

  • Manifold for Multiple Condensate Inlets
    Allows for the connection of multiple condensate sources for streamlined treatment.

  • Wall Mounting Kit
    Enables easy and secure wall installation, saving space and optimising system layout.

  • Spill Container
    Provides extra protection by containing any accidental spills during operation.

Get in touch today!

With so many air treatment products available, finding the right solution can seem challenging. Our specialists are here to simplify the process and deliver options that match your exact requirements. Get in touch with us for expert advice and tailored recommendations.

Technical data

Max Capacity

11,250

The S 4-900 can handle a maximum capacity of up to 11,250 m³/hr in mild climate conditions without dryer and filters, ensuring reliable condensate treatment for larger systems with minimal additional equipment.

Dimensions

975

The dimensions of the S range from 250 mm in height to 975 mm in length (A), allow for flexible installation in various spaces without compromising performance.

connections

10

With condensate inlet connections of 6 mm (1/4") and water outlet connections of 10 mm (3/8"), this series offers simple and efficient integration into existing systems.



Model Max capacity - Mild climate (without dryer & filters) (m³/hr) Max capacity - Mild climate (with dryer & filters) (m³/hr) Dimensions (mm) Connections
S 4 54 43 250x147x216 6mm (1/4")
S 18 225 180 390x278x428 2 x 1/2"
S 61 765 612 490x396x576 2 x 3/4"
S 108 1350 1080 583x446x721 2 x 3/4"
S 450 5625 4499 975x782x1000 2 x 3/4"
S 900 11250 8998 975x1600x1000 2 x 3/4"

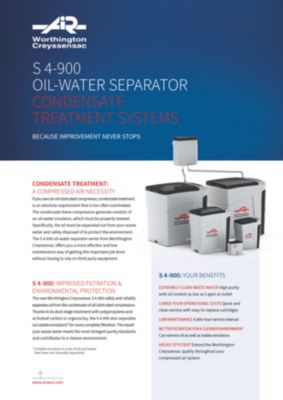

For full technical specification and more information refer to product brochure

S - Oil Water Separators

S - Oil Water Separators

Full product range

Filename
OWS_Brochure_A4_WCO_ENG_6999010550_LQ.pdf
Size
669 KB
Format
pdf
Download
