Cast Iron Piston Compressor

PIXAIR - PXR/SXR

Because everyone needs compressed air, Worthington Creyssensac has designed a range of piston compressor from 1 to 10 HP, for heavy duty and demanding types of applications. Discover a range combining both compactness and flexibility by reading below.

resilience

Durable Components

With their fully cast iron blocks, these compressors are reliable and robust units.

durability

Peace of Mind

The simple, reliable and robust design of these compressors will guarantee you long service life and peace of mind.

versatility

Various Applications

Suitable for workshops, automotive, and industrial use, this range offers adaptability with low noise and compact design.

PRODUCT OVERVIEW

The range for Demanding Applications

The Pixair compressors have been developed for heavy-duty and demanding applications, offering exceptional reliability and robustness. With fully cast iron blocks—including the crankcase, crankshaft, cylinders, cylinder heads, and valve seats—these compressors ensure long service life and dependable performance, even in tough conditions or dirty environments.


The specific design, featuring well-dimensioned cylinders and efficient cooling, allows the compressors to operate at low speed and low temperatures. This reduces the impact of the most damaging factors for piston compressors. Therefore, thanks to these advantages, this series is perfectly suited for intensive use in workshops, the automotive market and industrial applications.

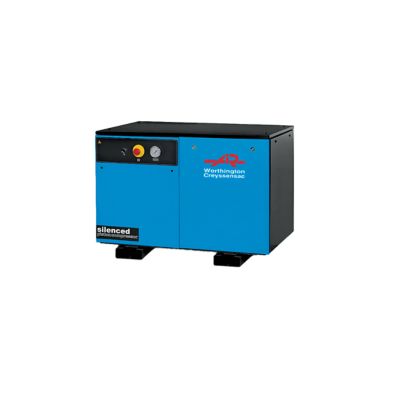

WCO Pixair frame piston compressor

Cast Iron Construction

The Pixair really makes a difference thanks to its all-cast iron construction. From the crankcase to the cylinders, every component is built to last, making these compressors the perfect allies for demanding tasks. Also designed to withstand wear and tear and to work perfectly in tough conditions, this technology ensures a longer service life and consistent performance. So whether you're tackling heavy projects or navigating tough environments, this feature gives you the confidence to keep working without compromise.

Powering Efficiency, Sustaining the Future

Our innovative technologies ensure maximum efficiency with minimal energy consumption, helping you achieve your sustainability goals while maintaining top-tier performance.

sustainability and environment

FULL OF FEATURES

Versatile Power Options and Pressure Switch Control

Versatile Power OptionsThis range has been built for flexibility since it supports both 230V and 400V power supplies. In addition, models up to 2.2 kW allow a free choice of voltage, while 400V becomes standard for higher power requirements.


Pressure Switch Control - A built-in pressure switch ensures automatic operation, maintaining optimal air supply without manual intervention. Use is therefore simplified, while enhancing efficiency during demanding tasks.

Why Choose the Pixair range?

Tough jobs demand tougher tools, and our Pixair series delivers. With its solid cast iron build, advanced cooling for non-stop performance, and unobstrusive operation, this range is built to handle whatever you throw at it. Compact, powerful, and ready for anything, it’s the ultimate choice for workshops, industrial tasks, and everything in between. Trust the PXR/ SRX series to keep your productivity soaring.

MORE FEATURES

Low Noise Levels and Plug-and-Play Installation

Low Noise Levels These compressors minimise noise (by operating between 64 and 78 dB(A)), creating a more comfortable working environment, especially in workshops or indoor spaces.


Plug-and-Play Installation - With their compact design and straightforward setup, these compressors integrate seamlessly into existing systems. So, you will save time and effort during installation.

Airlogic2T Controller


  • Power supply of 230V or 400V (free choice up to 2.2 kW, 400V as a standard starting from 3 kW)

  • DOL-start mode for models up to 4 kW

  • Pressure switch controlled

  • Low noise level

  • IP 55 motor (400V model), insulation class F

  • V-belt driven with steel protection cap

  • Large, cast iron flywheel

  • Floor-Mounted Compressors
    Ideal for setups with sufficient air storage capacity or for replacing an existing compressor’s upper structure.
  • Vessel-Mounted Compressors
    They come with an integrated air receiver for flexibility and easy connection to your compressed air system. Moreover, tanks are optimally sized to ensure proper machine control and consistent air availability.

Get in touch today!

With so many piston compressors to choose from, finding the right one can feel like a challenge. That’s where we come in. Our experts work with industries across Great Britain to match them with the best-fit solution for their operations. Get in touch today for expert advice tailored to your needs.

Technical data

INSTALLED POWER

1-10

The Pixair series offers power options ranging from 1 to 10 HP, making it a highly versatile range.

Max. pressure

15

These compressors ensure dependable performance across demanding applications.

noise levels

64

They maintain a comfortable environment, ideal for workshops and indoor use.



Model Power (HP) Pressure (bar) Displacement (m³/h) Noise Level (dB(A)) Dimensions (L x W x H, mm) Weight (kg)
PXR 160A 1 10 9.6 69 675 x 328 x 440 78
PXR 2200A 2 10 16.8 73 930 x 441 x 640 146
PXR 3200A 3 10 22.8 74 870 x 605 x 650 193.5
SXR 20A 2 10 16.8 70 1045 x 700 x 725 198
SXR 30A 3 10 22.8 71 1045 x 700 x 725 236
SXR 2300A 4 10 33 75 1635 x 670 x 1250 286
SXR 40A 5.5 10 42 77 1045 x 700 x 725 402
SXR 55A 7.5 10 56.1 78 1125 x 747 x 775 452
SXR 100A 10 10 78 78 1125 x 747 x 775 452

For full technical specification and more information refer to product brochure

PIXAIR - PXR/SXR

PIXAIR - PXR/SXR

Full product range

Filename

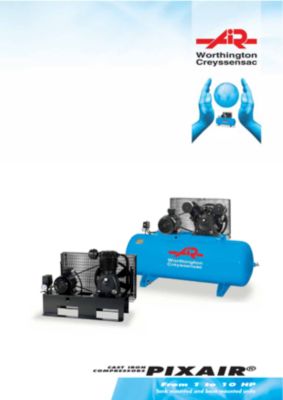

Worthington_PXR_SXR_Cast_Iron_Sales_Leaflet_EN.pdf
Size
559 KB
Format
pdf
Download

Contact us !

With so many models out there, it’s easy to end up with one that’s not quite right. That’s why businesses across Great Britain turn to Worthington Creyssensac. Whether you need power, efficiency or something built for tough conditions, we’ll help you find the right match.
