EFFICIENT
45% Energy Savings
Achieve up to 45% energy savings thanks to Permanent Magnet (PM) technology and in-house designed airend.
ROI
Fast Return on Investment
The Rollair 10–20E XV PM can pay back its additional investment over a fixed-speed model in about a year.
reliability
46 °C
This range offers reliable operation, even in ambient temperatures up to 46 °C.
Premium Compression Technology
The revolutionary Permanent Magnet (PM) technology intelligently adjusts its motor speed to match the actual air demand. Since most production environments experience fluctuating air needs, this smart adaptation leads to energy savings of up to 45%, for returns on investment in less than 1 year.
Why Choose the Rollair 10-20E XV PM?
The Rollair 10–20E XV PM makes advanced Variable Speed Drive performance accessible to every business, combining energy savings of up to 45% with the reliability of Worthington Creyssensac engineering. It runs quietly, adapts to your air demand, and keeps delivering steady performance day after day. For those who want proven technology that works smarter, this is the compressor that makes it happen.
- Permanent Magnet (PM) motor technology for energy-efficient operation
- Up to 45 % energy savings compared to fixed-speed compressors
- Oil-cooled motor for durability and stable performance
- Compact footprint : fits easily into small workspaces
- Low noise levels : allowing for installation near the point of use
- INFOLOGIC² Connect controller for full monitoring and easy management
- In-house designed compression element for high air delivery and optimised specific energy requirement
- Conical coupling drive train allowing fast and simple maintenance
- 8000 hours oil
- Food grade oil
- Timer drain on tank
- Stirrup forklift transport
- Aftercooler
- DC Choke (only sales option)
- Wooden box & Crate shipping options
Get in touch with Worthington Creyssensac Great Britain!
Choosing a screw compressor is a big decision, but you don’t have to make it alone. Worthington Creyssensac experts work closely with businesses to find solutions that fit their needs. Whether you're upgrading or investing in new equipment, we’ll help you make the right choice.
Technical data
INSTALLED POWER
7,5-15
With installed power ranging from 7,5 to 15 kW, this series accommodates various industrial needs.
capacity
120,6
Delivering Capacity of up to 120,6 m³/h, the Rollair 10-20E XV PM guarantees a consistent supply of compressed air for multiple applications.
PRESSURE
10
With pressure options spanning from 4 to 10 bar, the Rollair 10-20E XV PM provides the flexibility and efficiency needed to meet diverse operational requirements.
| Model | Motor power (kW) | Max. Pressure (bar) | Max. Capacity (m³/h)* | Noise Level (dBa) |
| Rollair 10 XV PM | 7,5 | 10 | 73,4 | 64 |
| Rollair 15 XV PM | 11 | 10 | 109,4 | 65 |
| Rollair 20E XV PM | 15 | 10 | 120,6 | 66 |
| *Capacity at 7bar |
For full technical specification and more information refer to product brochure
Rollair 10-20E XV PM
Rollair 10-20E XV PM
Full product range
- Filename

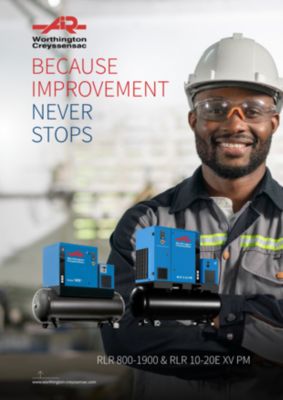

- Worthington_RLR800-1900_RLR10-20EXV_PM_leaflet_6999010810_EN_LR.pdf
