EFFICIENT
45% Energy Savings
The Permanent Magnet (PM) technology enables to cut energy consumption by up to 45% compared to conventional fixed-speed models.
accessibility
An affordable investment
With this range, VSD technology is now accessible and profitable, for businesses that previously couldn’t justify the investment.
Compactness
Plug-and-Play design
Its compact design allows this range to be easily installed in various types of industrial spaces.
Advanced IPM Technology

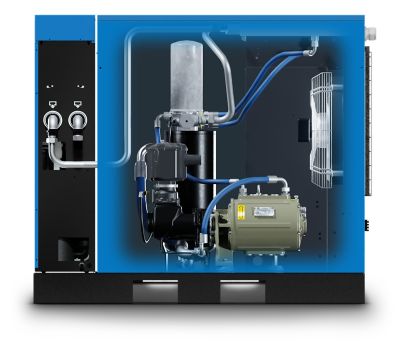

The Rollair 20-30 XV PM owes its efficiency in particular to its Permanent Magnet (PM) motor technology, which allows users to achieve energy savings of up to 45%. The variable speed that goes hand in hand with this technology allows the compressor to adapt its speed to the actual needs of the industry, explaining the energy-efficient nature of this range.
Why Choose the Rollair 20-30 XV PM?
Because true efficiency should be within everyone’s reach, the Rollair 20–30 XV PM delivers the performance of advanced Variable Speed Drive technology without the heavy investment cost. It runs quietly, adapts to your air demand, and keeps energy consumption up to 45% lower than fixed-speed models, thanks to its Permanent Magnet (PM) technology. Built to last and easy to integrate, with this compressor, your business can do more while spending less.
- Permanent Magnet (PM) motor technology delivering up to 45% energy savings
- Variable Speed Drive (VSD) automatically adjusts motor speed to match air demand
- Oil-cooled motor ensuring performance and durability
- Compact, plug-and-play design ideal for easy installation
- Reliable operation in ambient temperatures up to 46 °C
- INFOLOGIC² Connect controller for smart monitoring and control
- IP54 electrical cubicle, that can withstand up to 60 °C with the highest standards in EMC performance
- In-house designed compression element, ensuring best-in-class free air delivery and specific energy requirement
- 8000-hour oil
- Food-grade oil
- Water separator (WSD)
- Line filter G (for tank-mounted units with dryer)
- DC choke (sales option)
- Wooden box or crate packaging
Get in touch with Worthington Creyssensac Great Britain!
Choosing a screw compressor is a big decision, but you don’t have to make it alone. Worthington Creyssensac experts work closely with businesses to find solutions that fit their needs. Whether you're upgrading or investing in new equipment, we’ll help you make the right choice.
Technical data
INSTALLED POWER
15-22
The Rollair 20-30 XV PM is offered in 15, 18,5 and 22 kW configurations, delivering powerful performance for even the most demanding industrial applications.
capacity
229,7
With a maximum free air delivery rate of 229,7 m³/h, it provides a reliable and ample supply of compressed air to meet a wide range of industrial requirements.
PRESSURE
10
This range delivers optimal performance and efficiency.
| Model | Motor Power (kW) | Max. Pressure (bar) | Max. Capacity (m³/h)* | Noise Level (dBa) |
| Rollair 20 XV PM | 15 | 10 | 171 | 67 |
| Rollair 25 XV PM | 18,5 | 10 | 200,2 | 69 |
| Rollair 30 XV PM | 22 | 10 | 229,7 | 71 |
| *Capacity at 7 bar |
For full technical specification and more information refer to product brochure

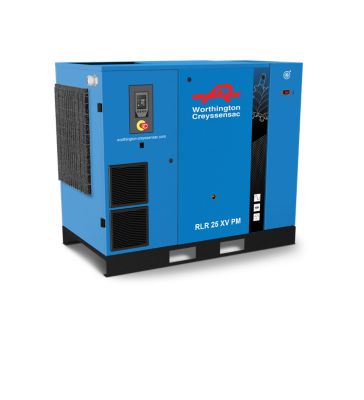

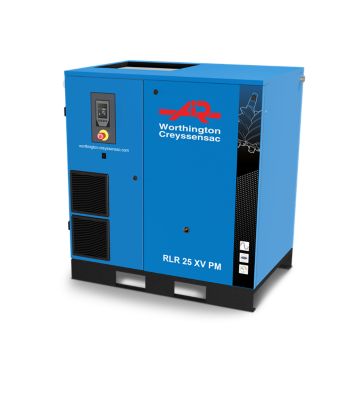

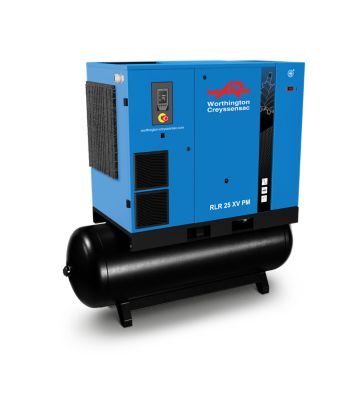

Rollair 20-30 XV PM
Rollair 20-30 XV PM
